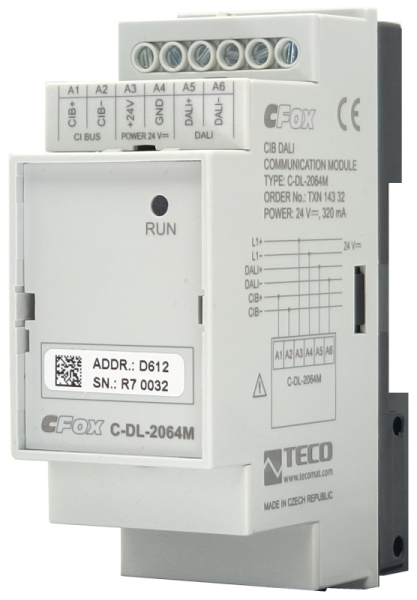

C-DL-2064M
C-DL-2064M; CIB-DALI converter, for 64 DALI-2 ballasts More information
In Stock
277.40€
336€
including VAT
- VAT:
- 21 %
The module C‑DL‑2064M(Order No.: TXN 143 32) is a converter of protocols CIB‑DALI. It is intended for lighting systems with DALI protocol specification NEMA Standards Publication 243‑2004 Digital Addressable Lighting Interface (DALI) Control Devices Protocol PART 2‑2004. From version FW v.1.5 module can be used as a protocol converter CIB‑DSI.
Signals of CIB and DALI/DSI buses are connected to screw terminals. The internal circuits of the module are powered from the CIB bus. The output circuits of the DALI/DSI bus are powered by an external 24 V DC source. Program control functions of module is supported by function blocks from the DaliLib.mlb library.
Signals of CIB and DALI/DSI buses are connected to screw terminals. The internal circuits of the module are powered from the CIB bus. The output circuits of the DALI/DSI bus are powered by an external 24 V DC source. Program control functions of module is supported by function blocks from the DaliLib.mlb library.
 |
TXN13354_C-DL-0064M_M01_000.dxf | 127.04 kB | Download file | |
 |
TXV13354_C-DL-0064M_U01_ce.pdf | 469.87 kB | Download file | |
|
TXV00413_01_Foxtrot_Perif_CIB_U03_c.pdf | 13.29 MB | Download file | |
|
C06 024_07cz22_Foxtrot_2021_03_01.pdf | 700.41 kB | Download file | |
 |
TXN13354_C-DL-0064M_M01_000.dwg | 73.3 kB | Download file | |
|
TXN13354_C-DL-0064M_S01_000.dwg | 50.87 kB | Download file | |
|
TXN13354_C-DL-0064M_S01_000.dxf | 45.48 kB | Download file | |
|
TXV13354.01_C-DL-0064M_U01_cs.pdf | 786.92 kB | Download file | |
|
TXV14332C-DM-2064M_U01_cs.pdf | 1.55 MB | Download file | |
 |
Teco_Foxtrot_2024-01_00.zip | 19.54 MB | Download file | |
|
Teco_Foxtrot_2024-01_00.kni | 6.47 MB | Download file |
