CP-2061

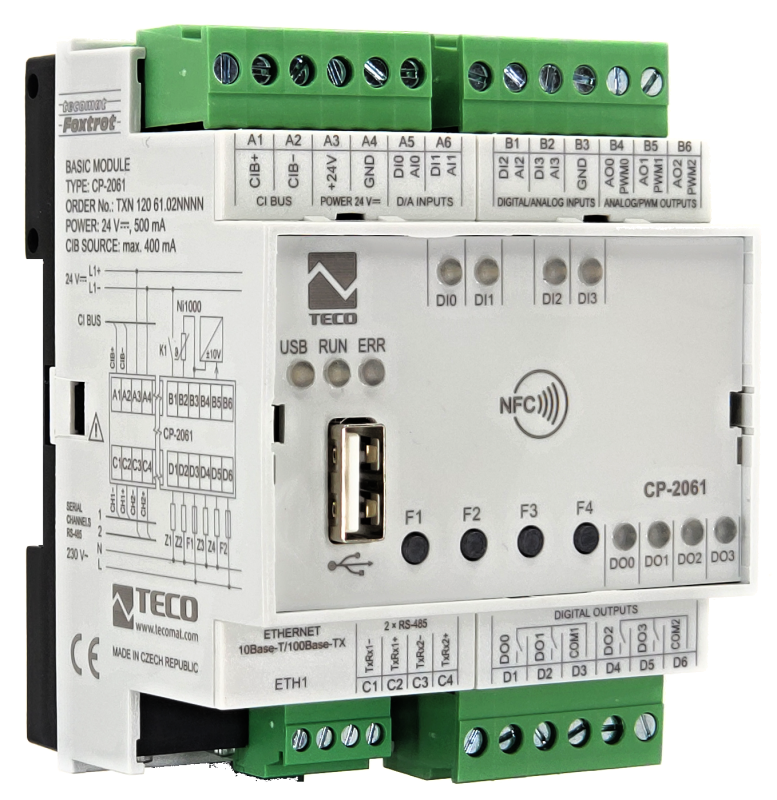

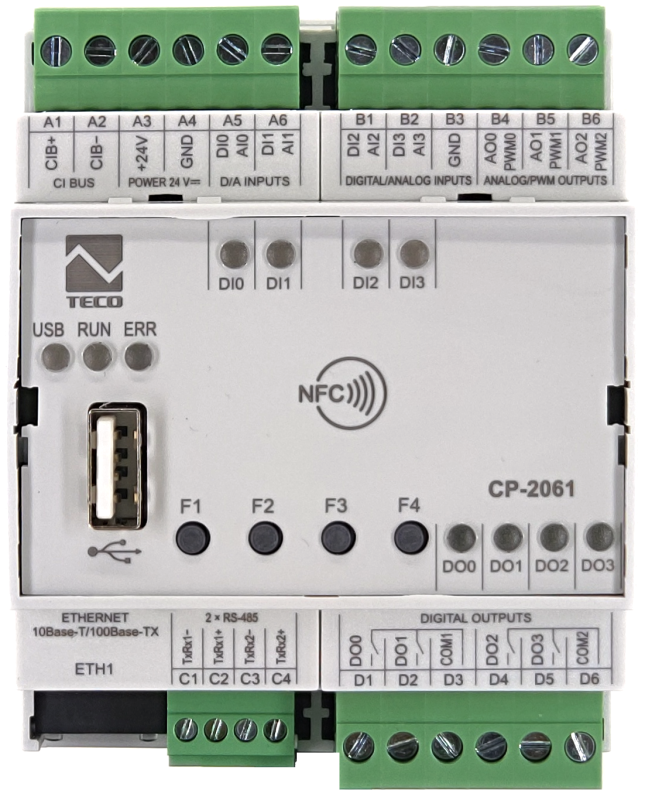

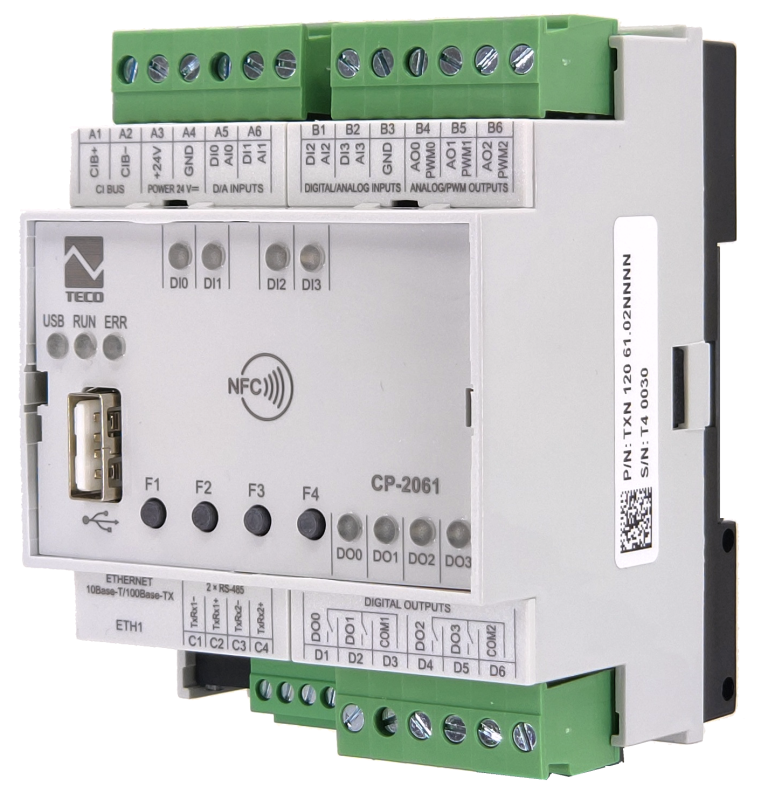

The CP-2061 is a second-generation Foxtrot base module, which is an optimal combination of a central unit with an integrated extended combination of 4 digital and analog inputs and 3 analog outputs, 3 transistor outputs or PWM, compact size occupying the width of 4 modules on a DIN rail.
Two-wire CIB Common Installation Bus® (up to 32 addressable modules). It can therefore be expanded in the same way as other base modules.
It is equipped with a total of 11 I/O:
four multi-purpose inputs, each of which can be used as either analog or binary
three analog outputs for proportional control of various connected devices.
4 independent relay outputs organized into two groups of two with their own common terminal
Communication capabilities of the basic CP-2061 module:
1x Ethernet interface 100 Mbit/s, each with up to 32 simultaneous connections (programming and general IP communication)
USB A for Flash memory, WiFi adapter (client and AP - Access point) etc.
2x serial interfaces RS-485
1x CIB interface
NFC memory

CP-2061 is equipped with a new powerful central unit (J series CPU) with memory
2 MB for the user program,
128 MB of internal disk for storing files with parallel access from LAN as a network disk,
16MB of fast RAM disk
slot for microSD card up to 1 TB
File management is provided by a journaling file system
