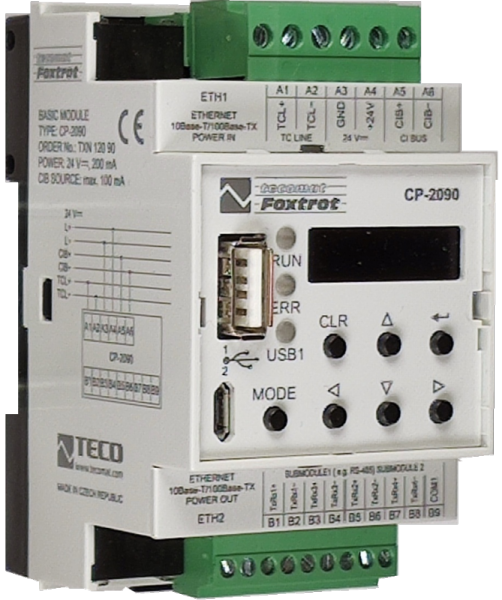

CP-2090.11NSNN.50

The CP-2090 is the smallest, second-generation Foxtrot base module. It only occupies the width of 3 modules on the DIN rail. It reaches this size due to the absence of any inputs / outputs.
The masters of both system expansion buses - TCL2 and CIB Common Installation Bus® - are a matter of course. It can therefore be extended in the same way as other basic modules.
CP-2090 is therefore suitable as a flexible freely programmable communication center, programmable converter of interfaces and protocols, data logger with its own web server,
with fast and high-capacity data storage up to 1 TB with file system, etc.

Except for the built-in LTE modem, which requires a minimum width of 6M modules, the basic module CP-2090 has all the attributes of the new generation of the central unit:

Communication capabilities of the basic module CP-2090:

•
•     2x Ethernet interface 100 Mbit / s, each with up to 32 simultaneous connections (programming and general IP communication)
•     USB micro (programming)
•     USB A for Flas memory, WiFi adapter (client and AP - Access point) etc.
•     Variant with built-in LTE modem for direct wireless connection to the Internet via a mobile network operator
•     Slots for up to 4 optional serial interfaces RS-485, RS-232

Power supply 24 V DC or via passive PoE - (power over Ethernet)

CP-2090 is equipped with a new powerful central unit (CPU series L) with memory

•     1 MB for user program,
•     128 MB internal disk for storing files with parallel access from the LAN as a network disk,
•     16MB fast RAM disk
•     microSD card slot up to 1 TB
•     File management is provided by a journaling file system
•     Local communication with the user via OLED display (4 lines / graphic) and 6-key keyboard
