Operátorský panel ID-74

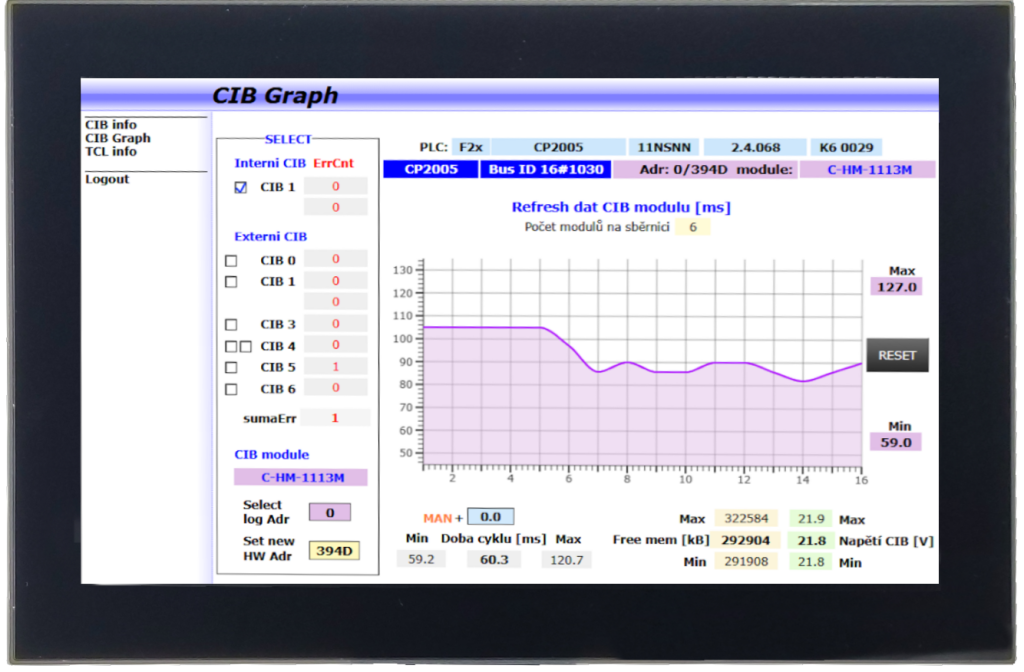

7" color graphic operator panel with capacitive touch screen. Designed to work with the TECOMAT TC800 and Foxtrot systems to interpret its user-programmed internal interactive web pages. User screens are created in the Mosaic programming environment with the WebMaker tool and are identical to the pages that are in Tecomat available via the web server also by other standard and universal web browsers.

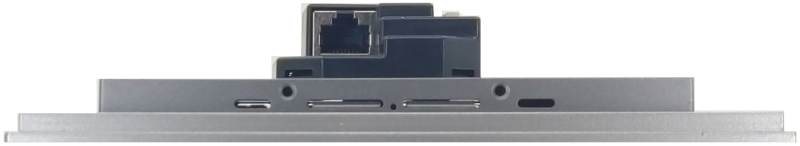

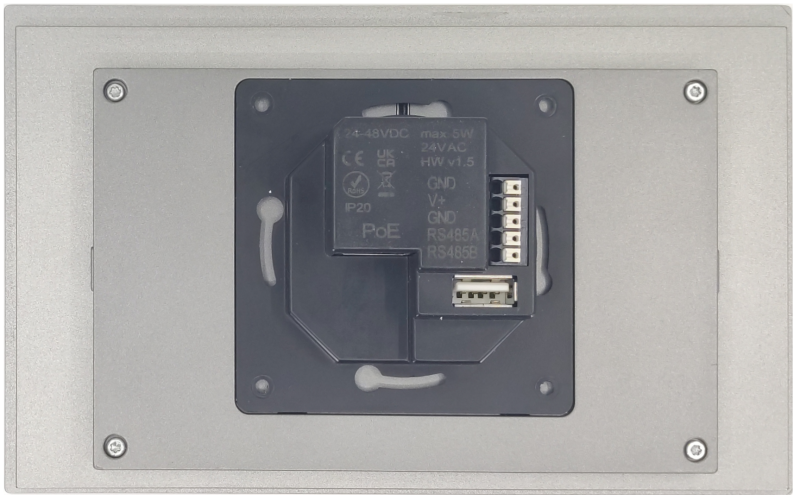

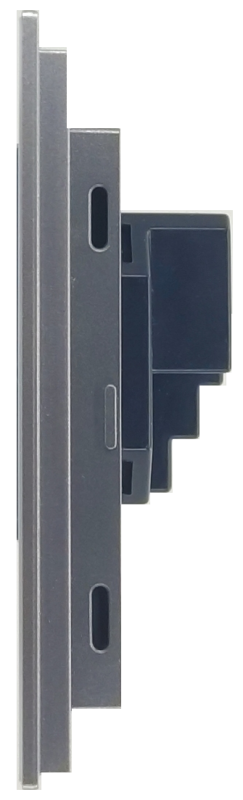

The panel has a backlit capacitive touch LCD TFT 7" display with an aspect ratio of 16:9 with a resolution of 1024x600 pixels. It is powered by an external 24 V DC source. The communication between the control system and the ID-74 panel takes place via the Ethernet 100Base-TX interface. It is intended for mounting on the wall in a standard 68 mm installation box, or for fixing to the door of the switchboard panel with the help of a fixing frame ordered separately.
