OT-8651

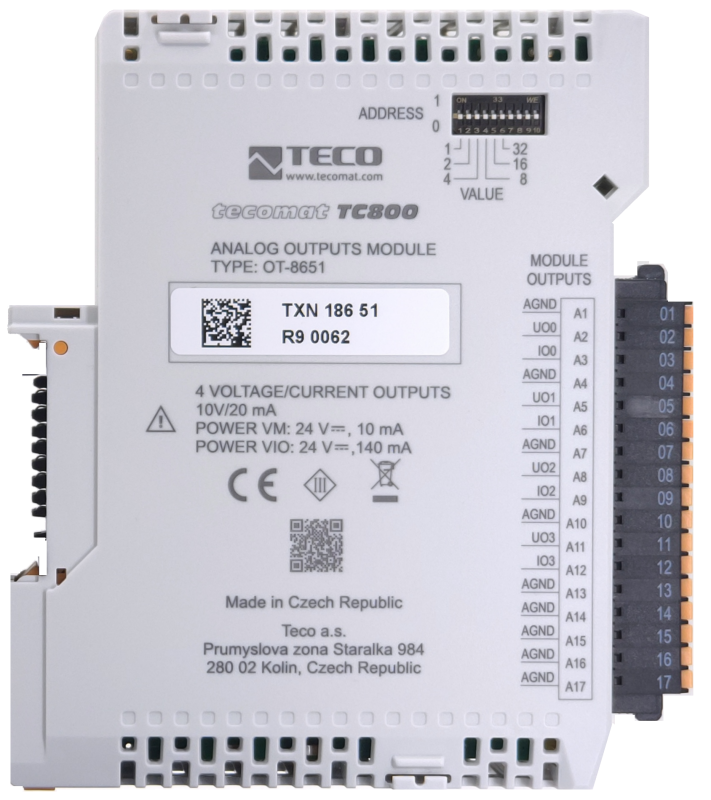

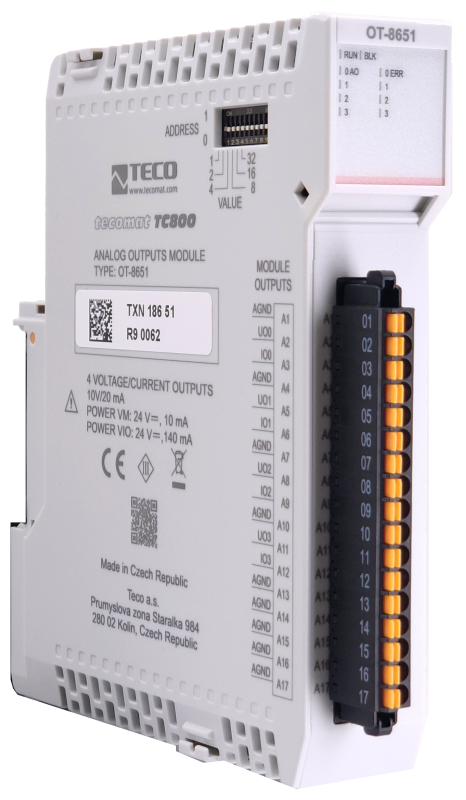

OT-8651 - expansion module contains 4 analog outputs AO0 to AO3. The outputs have separate terminals and are output as voltage with a range of 0 ÷ 10 V, as well as current with a range of 0 ÷ 20 mA. However, the output cannot be connected as both voltage and current at the same time. Loads of both types are connected against the ground. The resolution is 12 bits, the output value can be set in percent of the maximum value, in engineering units or fullscale (0-30000). The current outputs have an indication of the disconnection of the current loop (open circuit) on the front panel. Current loop disconnection detection is only functional when the output current is set to at least 100 µA.
The analog outputs are galvanically isolated from the internal circuits and from each other. The module is equipped with a removable screwless connector with 17 terminals and with locking after insertion into the module.
